Modhuban Cineplex CRM – Enterprise Multiplex ERP, Multi-Channel Ticketing Engine & Gate Control Architecture

Executive Summary

Modhuban Cineplex (https://modhubancineplexbd.com/) is a leading entertainment complex situated in Bogura, Bangladesh. To overcome the challenges of disconnected physical ticket counters, online web traffic surges, manual concession tracking, and gate verification friction, UpNovate engineered an all-in-one Enterprise Resource Planning (ERP) and Customer Relationship Management (CRM) platform.

The system bridges physical on-premise Point-of-Sale (POS) counter terminals, live public online bookings, automated inventory ledgers, and barcode/QR gate scanning into a synchronized, event-driven ecosystem. Featuring real-time bidirectional WebSocket syncing, atomic database isolation levels, automated ESC/POS thermal printing routines, automated SMS dispatch via BulkSMSBD, and enterprise payment settlements via SSLCOMMERZ, this platform serves as an end-to-end digital backbone for modern cinema operations.

---

1. Comprehensive Project Background & Operational Bottlenecks

Prior to deploying this custom enterprise software architecture, Modhuban Cineplex operated with traditional disconnected software and manual box-office processes. During holiday releases and weekend premiere screenings, the administration faced severe operational, logistical, and technical hurdles:

• Critical Inventory Silos & Clashing: Physical counter staff and online mobile web buyers accessed separate or un-synchronized seat databases. This caused frequent race conditions where counter clerks and online buyers sold the exact same prime seats at the same second.
• Cashier Balancing & Shift Auditing Deficits: Cashiers operated without individual system-enforced drawer locks. Reconciling physical cash, bKash merchant receipts, and digital card settlements against tickets printed took 1 to 2 hours of manual ledger auditing after every final screening.
• Paper-Based Entry Congestion: Staff relied on manual paper tearing and paper attendee lists. During crowded shows, verifying 300+ moviegoers caused long bottlenecks at auditorium doors, delaying scheduled screening start times.
• Disconnected Food & Beverage (F&B) Management: Popcorn, beverages, and snack combos were managed via handwritten slips or separate POS registers. This caused substantial stock shrinkage, untracked ingredient usage, and lost upselling opportunities during ticket checkout.
• Complex Distributor Revenue Accounting: Film distributors require tiered percentage splits based on weekly performance runs (e.g., Week 1: 50%, Week 2: 45%, Week 3: 40%) alongside municipal entertainment tax deductions. Preparing distributor settlement sheets required extensive, error-prone spreadsheet calculations.
• Webhook Drops & Payment Latency: Early single-channel mobile payment setups suffered from gateway timeouts and unhandled network drops, leaving customers debited without confirmed ticket records.

---

2. Core Strategic & Architectural Objectives

To establish a scalable multiplex management platform, the UpNovate engineering team defined seven foundational pillars:

1. Unified Real-Time Inventory Synchronization: Connect physical box-office counter screens, online mobile clients, and administrative dashboards to a central seat inventory engine with sub-second WebSocket broadcasting via Socket.io.
2. High-Speed Box-Office Counter POS: Develop a keyboard-driven, fast-action counter interface allowing cashiers to complete seat selections, accept payments, and issue thermal tickets in under 5 seconds.
3. Sub-Second Hardware-Level Gate Access Control: Build an automated web-based QR-code verification module running on Android/iOS mobile cameras and USB 2D barcode scanners with sub-500ms validation.
4. Integrated Food & Beverage (F&B) Point of Sale: Integrate concession ordering directly into the counter ticketing workflow with real-time automated recipe-level stock deductions.
5. Role-Based Access Control (RBAC) & Security Hardening: Implement strict permission hierarchies across Super Admins, Branch Managers, Shift Supervisors, Counter Cashiers, and Gate Staff.
6. Automated Multi-Tier Financial & Distributor Settlement: Create an automated reporting module that calculates gross ticket revenue, net entertainment tax deductions, distributor royalty shares, and cashier drawer balances in one click.
7. Enterprise High-Availability Hosting: Deploy the platform on an optimized Linux VPS environment with custom Nginx reverse proxying, automated SSL/TLS termination, Brotli compression, and PM2 process clustering.

---

3. Technology Architecture & Complete Full-Stack Matrix

---

4. In-Depth Operational Workflows & System Architecture

A. The Unified Booking & Synchronization Pipeline

The platform coordinates physical counter terminals and public online mobile traffic through an automated five-stage transactional lifecycle:

1. Showtime & Hall Mapping: Admin sets up auditorium parameters, movie formats (2D/3D), audio standards, and pricing tiers (VIP, Premium, Regular).
2. Live Interactive Seat Mapping: Cashiers on desktop POS terminals and mobile users on web browsers view identical seat maps. Clicking a seat broadcasts a Socket.io event that marks the seat as "Holding" across all active devices in real time.
3. Redis Atomic Lock Execution: The seat is temporarily locked in Redis memory (8 minutes for online users, 2 minutes for physical cashiers). PostgreSQL row-level locks prevent any write collision.
4. Payment Execution & Verification: Counter sales are finalized instantly via Cash/MFS, while web sales complete via SSLCOMMERZ. An asynchronous server-to-server IPN listener verifies transaction authenticity.
5. Multi-Channel Ticket Generation: The system prints a physical 80mm thermal ticket with an encrypted QR code at the counter, or generates a mobile QR pass and dispatches an automated SMS confirmation via BulkSMSBD.

B. Hardware-Integrated Counter POS Workflow

Designed specifically for peak-hour rush, the counter interface requires zero mouse movement:

• Keyboard Hotkeys: Cashiers use arrow keys and hotkeys for rapid seat selection, movie switching, and payment mode toggling.
• Direct ESC/POS Thermal Printing: Utilizing the WebUSB/WebHID standard, the system communicates directly with 80mm POS receipt printers, cutting print latency to under 1 second without showing standard operating system print dialogs.
• Cash Drawer Integration: The printer interface sends electrical pulse signals to open the physical cash drawer automatically upon finalizing a cash sale.

C. Gate Access Control & Anti-Fraud Security Workflow

Gate attendants verify customer tickets via mobile devices or handheld USB 2D scanners:

• Sub-500ms Instant Decryption: The scanner reads the high-density QR code, decrypts the unique cryptographic ticket hash, and verifies seat numbers, hall allocation, and show dates against the database.
• Real-Time Duplicate Prevention: Once scanned, the ticket status changes to "Redeemed" across the central database. Any subsequent attempt to present the same QR code immediately triggers an audio-visual warning alert.

---

5. Major Engineering Challenges Solved & Custom Modules

A. Resolving Online vs. Counter Race Conditions

• Challenge: When a blockbuster opened, online web visitors and physical counter cashiers frequently selected the same prime center seats simultaneously, resulting in database lockouts and double bookings.
• Solution: Architected a multi-layered atomic reservation pipeline. Redis distributed locks hold seat tokens in memory for rapid response, while the PostgreSQL database enforces strict SELECT FOR UPDATE transaction isolation. If a transaction is abandoned or fails, the Redis TTL expires automatically, freeing the seat and notifying all connected clients over Socket.io.

B. Driverless Browser Thermal Printing (ESC/POS)

• Challenge: Standard browser printing commands (window.print()) displayed operating system dialog popups and rendered slow raster graphics, causing counter delays.
• Solution: Engineered a custom client-side binary ESC/POS generator that connects directly to receipt printers over WebUSB. The generator constructs raw byte streams including custom text styling, dynamic QR bit arrays, and auto-cut commands, printing complete passes in under 1.5 seconds.

C. Automated F&B Inventory & Recipe Depletion

• Challenge: Concession items sold at counters were decoupled from ingredient inventories, leading to untracked food waste and inventory discrepancies.
• Solution: Integrated an inventory breakdown module. Selling a "Large Popcorn Combo" automatically deducts specific raw gram counts of corn kernels, seasoning, oil, paper buckets, and soda cups from the warehouse stock ledger in real time.

D. Automated Multi-Tier Distributor Settlements & Accounting

• Challenge: Calculating complex distributor revenue shares, entertainment tax deductions, and cashier drawer balancing at the end of each screening required tedious manual calculations.
• Solution: Built an automated accounting sub-engine. At the end of each shift or movie run, administrators generate detailed fiscal audit reports displaying gross collections, net entertainment tax deductions, distributor percentages, concession profits, and cashier shift logs in one click (exportable to PDF and Excel).

E. Idempotent Payment Reconciliation with SSLCOMMERZ

• Challenge: Unstable mobile data networks caused dropouts during customer gateway redirects, leading to situations where customers were charged but ticket creation was interrupted.
• Solution: Re-architected the payment backend around idempotent Server-to-Server IPN (Instant Payment Notification) webhooks. The system verifies payment cryptographic signatures independently of the user's browser state, issues the ticket record in PostgreSQL, and dispatches the confirmation SMS via BulkSMSBD automatically.

---

6. Comprehensive Module Breakdown of the CRM

1. Box-Office POS Module

• Rapid seating blueprint with visual color-coded tiers (Available, Holding, Booked, VIP, Wheelchair).
• Instant split-payment support (Cash, bKash, Card, Mixed).
• Custom discount management (Promo codes, Student discounts, VIP complimentary passes).

2. Auditorium & Showtime Manager

• Multi-screen hall configuration with dynamic seat coordinate plotting.
• Drag-and-drop movie showtime scheduling with automated cleaning buffer intervals.
• Tiered pricing matrices customizable by showtime (Morning Show, Matinee, Prime Night).

3. Concession & Warehouse Inventory Module

• Point-of-sale food ordering integrated into ticket checkout.
• Multi-warehouse stock tracking (Main Storage vs. Counter Dispensary).
• Low-stock threshold alerts and automated vendor purchase order generation.

4. Gate Security & Validation Module

• Mobile-responsive camera scanner interface for door attendants.
• Real-time gate occupancy counters displaying total entrants vs. empty seats.
• Audio-visual confirmation tones for Valid, Already Scanned, and Expired tickets.

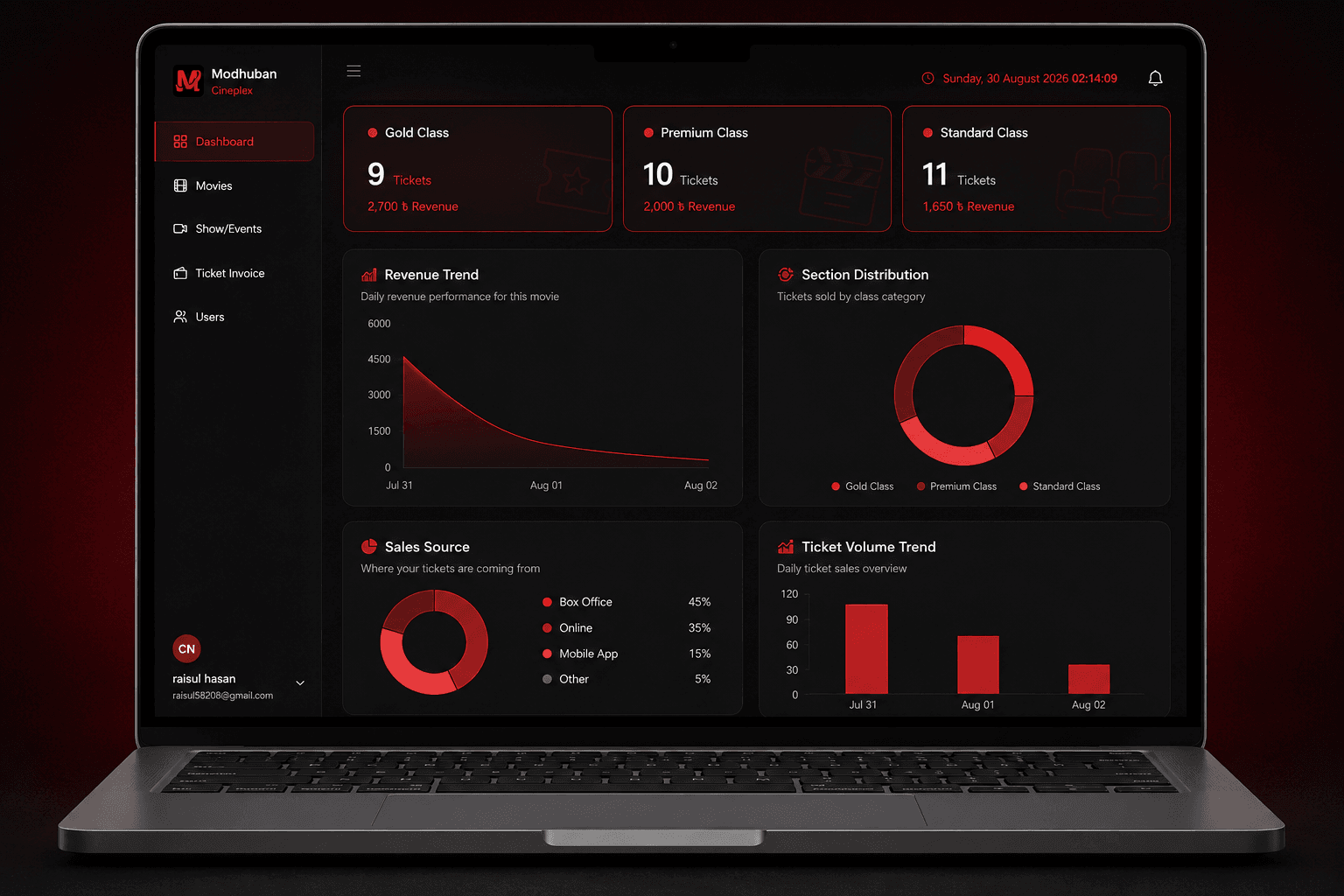

5. Financial Reporting & Analytics Suite

• Automated Distributor Royalty Reports (Gross Box Office, Deductions, Net Share).
• Cashier Shift Audits (Cash in Drawer vs. System Recorded Sales).
• Hourly sales velocity heatmaps and movie occupancy analytics.

---

7. Measurable Business Outcomes & Performance Metrics

Following the deployment of the integrated CRM, POS, and ticketing ecosystem by UpNovate, Modhuban Cineplex achieved major gains in counter speed, financial accuracy, and guest satisfaction:

---

8. Summary & Future Technology Roadmap

The Modhuban Cineplex CRM & Multiplex Management Platform stands as an enterprise-grade digital solution demonstrating how modern full-stack web engineering, real-time WebSockets, and low-latency database architectures can unify physical and digital operations.

Upcoming roadmap enhancements include:

• VIP Member Facial Recognition Check-In: Integrating AI-powered biometric verification for registered membership holders.
• Dynamic Demand-Based Ticket Pricing: Developing machine-learning algorithms to adjust ticket pricing dynamically based on booking velocity and historical show demand.
• In-Seat Concession Delivery Engine: Allowing seated moviegoers to scan a seat QR code on their mobile device and order snacks delivered directly to their hall seat during interval breaks.
